Propane systems require precise low-pressure monitoring to ensure safety and efficiency. The following gauges use capsule diaphragm technology to read small pressure changes accurately, ideal for natural gas lines, regulators, and air testing. Each entry highlights suitability for propane-related applications, durability, and readability to help you choose the right gauge for your setup.
| Product | Brand | Range | Dial | Mount | Special Note |
|---|---|---|---|---|---|
| BPSSDI 0-15 Inches | BPSSDI | 0-15 in H2O | 2.5″ | Lower Mount | Capsule design; brass connection; stainless steel case |
| SCTSNSR 0-60 Inches | SCTSNSR | 0-60 in H2O | 2.5″ | Lower Mount | Capsule system; brass and chrome; ASME-grade accuracy |
| SCTSNSR 0-30 Inches | SCTSNSR | 0-30 in H2O | 2.5″ | Lower Mount | Low-pressure readiness; non-corrosive media capable |
| PIC Gauges LP1-254-5-0-15 | PIC Gauges | 5.0/0.15 in wc? (0-15 in wc) | 2.5″ | Bottom Mount | Dry, non-fillable; brass internals; zero adjust |
| SENCTRL 0-60 Inches | senctrl | 0-60 in H2O | 2-1/2″ | Lower Mount | Chrome-plated steel body; brass wetted parts |
BPSSDI 0-15 Inches of Water Column Gauge
The BPSSDI 0-15 in H2O gauge uses a capsule measurement system to accurately capture low pressures. Its brass connection part provides compatibility with non-corrosive liquids and gases, making it suitable for propane testing environments. A robust 304 stainless steel case enhances durability in varied conditions. The 2.5-inch dial is complemented by a clear polycarbonate lid, aiding readability, while the single-scale display maintains ±2.5% accuracy for precise readings. This model emphasizes stability and quick visual confirmation for routine low-pressure checks.
SCTSNSR 0 to 60 Inches of Water Column Gauge
This SCTSNSR model uses a capsule measurement system for precise low-pressure readings, with an accuracy of ±2.5% of span per ASME B40.100 Grade A. Built from brass and chrome-plated steel components to withstand non-corrosive media like air and natural gas lines, this gauge is well-suited for propane regulators and related testing tasks. The 0-60 inch scale, paired with a 2.5-inch dial, offers clear visibility and quick interpretation in field work or shop environments.
SCTSNSR 0 to 30 Inches of Water Column Gauge
This variant from SCTSNSR uses the capsule measurement approach to support low-pressure measurement with a single 0-30 inch water column range. Its brass and chrome-plated steel construction ensures reliable performance with non-corrosive gases and liquids, including propane systems. The gauge features a 2.5-inch dial for comfortable reading, and its design emphasizes durability and repeatable results across diverse test scenarios.
PIC Gauges LP1-254-5-0-15
PIC Gauges LP1-254-5-0-15 features a dry, non-fillable design with a capsule-type diaphragm for precise low-pressure readouts. The gauge includes a zero adjustment screw on the back for field fine-tuning and a 2.5-inch dial to help technicians quickly assess propane-related pressure on-site. The combination of a chrome or brass wetted path and a robust housing supports long-term use in non-corrosive environments. This model is well-suited for quick verification tasks without the need for refilling or maintenance of liquid fills.

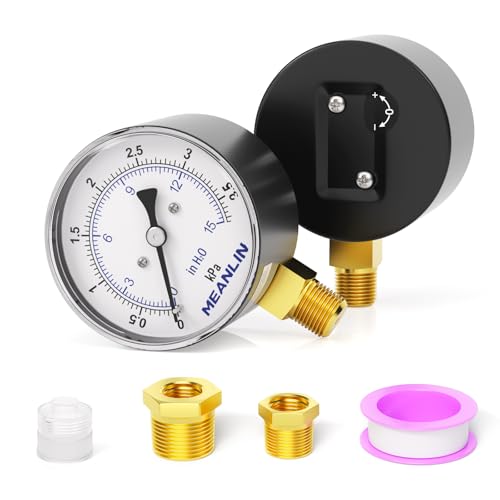

MEANLIN MEASURE 0-15 in H2O Capsule Gauge
The MEANLIN MEASURE 0-15 in H2O gauge uses a diaphragm-type capsule measurement system designed for low-pressure readings. It features a 2.6-inch dial, 1/4″ NPT connections, and a rear-adjustable zero setting for precise calibration. Optional 1/2″ NPT and 3/8″ NPT hex bushings extend versatility, while the lower-mount installation provides convenient integration into existing test setups. This model focuses on easy adjustment and dependable performance in propane and air-pressure testing contexts.
SENCTRL 0-60 Inches of Water Column Gauge
The SENCTRL gauge employs a capsule measurement system ideal for low-pressure readings, housed in a chrome-plated steel case with brass wetted parts suitable for air and gas pressure tests, including propane regulators. The 0-60 inch water column range is paired with a clear display, offering straightforward interpretation and reliable performance across typical propane testing scenarios. This model emphasizes durability and consistent accuracy across the full range.

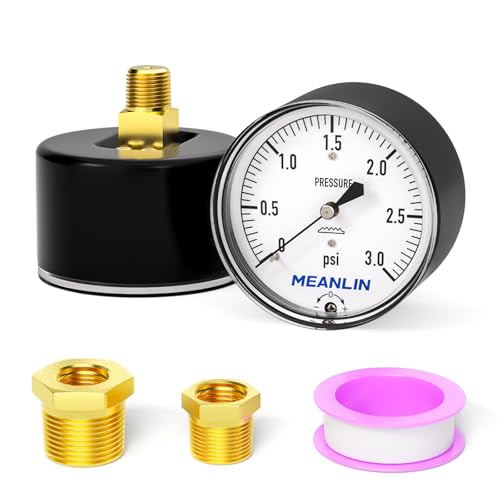

MEANLIN MEASURE 0-3 psi Low Pressure Gauge
This MEANLIN MEASURE model covers small psi ranges with a diaphragm-type capsule system, designed for dry, non-fillable operation. It uses a 1/4″ NPT connection and a 2-1/4″ dial face, with back-mount installation for straightforward integration into existing test assemblies. The compact range makes it suitable for precise propane regulator checks and other low-pressure applications where quick confirmation of pressure is needed without frequent maintenance.
BPSSDI 0-60 Inches of Water Column Gauge
The BPSSDI 0-60 in H2O gauge expands the capsule-based measurement approach to a broader range. The brass-wetted path supports reading non-corrosive liquids and gases, including propane, while a durable 304 stainless steel case provides long-term stability. The 2.5-inch dial allows for easy monitoring in shop or field environments, and the single-scale display maintains accuracy at a +/- 2.5% level across the span. This option emphasizes versatility for higher low-pressure requirements in propane systems.
Buying Guide
- Measurement principle: Capsule or diaphragm-based gauges excel at low-pressure ranges and provide stable readings for propane lines. Capsule systems generally offer good repeatability and resilience to minor pressure fluctuations.
- Pressure range: Choose a range compatible with your system. For propane regulators and lines, gauges spanning from 0-15 to 0-60 inches of water are common. Consider whether you need a narrower or broader range for your tests.
- Materials and durability: Brass wetted parts are ideal for non-corrosive gases and liquids like air and propane. Stainless steel cases offer enhanced durability in harsh environments, while chrome-plated bodies add protection against corrosion and wear.
- Mounting configuration: Lower-mount and back-mount designs affect installation space and accessibility for zero adjustments. Ensure the mount type matches your test setup and available panel space.
- Readability: A 2.5-inch (or similar) dial with a clear lens and legible markings facilitates quick readings in field conditions. A back or rear zero-adjustment feature can simplify calibration without disassembly.
- Calibration and accuracy: Look for gauges with stated accuracy around ±2.5% across the range, and confirm compliance with relevant standards (such as ASME B40.100) when applicable for your application.
- Maintenance: Dry, non-fillable gauges reduce maintenance needs and the risk of liquid leakage, which is advantageous in propane testing environments.
- Warranty and support: For critical propane systems, select brands offering reliable customer support and documentation for safe operation and calibration procedures.
- Application fit: If your work involves natural gas lines or propane regulators, prioritize gauges designed for gas and air with compatible brass wetted parts and non-corrosive media compatibility.
