Protecting electrical systems begins with reliable insulated case circuit breakers. This guide highlights top options designed for safety, compatibility, and durable performance in residential and light commercial panels. Each product below is evaluated for insulation quality, thermal magnetic protection, and plug-on molded case design that fits standard 3/4-inch spaces. Use the buying guide to compare sizing, mounting, and replacement considerations to match your panel specifications and ongoing electrical needs.
| Product | Brand | Amp Rating | Type | Voltage | Key Feature |
|---|---|---|---|---|---|
| 240 2-Pole 40-Amp | SOYGN | 40 A | Plug-On Molded Case | 120/240V | Thermal Magnetic, 10 KAIC, easy installation |
| 20 Amp 2-Pole | Sekelo | 20 A | Plug-On Molded Case | 120/240V | Thermal Magnetic, 10-Yr Warranty |
| 20 Amp 1-Pole | Sekelo | 20 A | Plug-On Molded Case | 120/240V | Thermal Magnetic, 10-Yr Warranty |
| 2100 2-Pole 100 Amp | YUXIVCNE | 100 A | Plug-On Molded Case | 120/240V | 10 KAIC, direct Cutler Hammer center replacement |
| 250 2-Pole 50-Amp | GAOERFU | 50 A | Plug-On Molded Case | 120/240V | Thermal Magnetic, 10 KAIC, high insulation quality |
240 2-Pole 40-Amp Circuit Breaker
The SOYGN 240 circuit breaker uses high-quality insulation materials to support fireproof performance and long service life. It features a Type 240 standard plug-on molded case with a quick-close, quick-break mechanism and an inverse-time element for precise tripping. The trip-free handle design ensures the breaker cannot be held in the ON position during a fault. It is designed for straightforward installation in residential load centers, appliance panels, and micro commercial distribution panels, with two 3/4-inch spaces required for normal tripping.

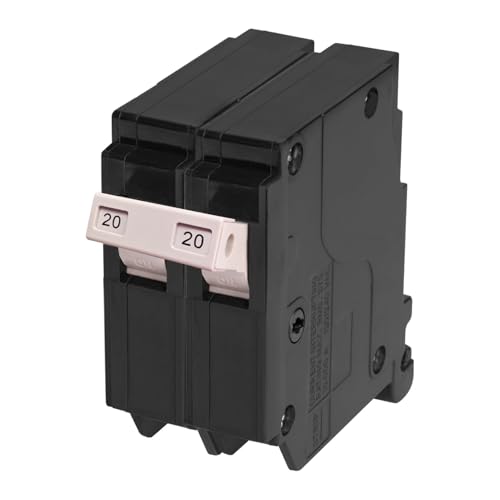

20 Amp 2-Pole Circuit Breaker
This Sekelo 20 Amp two-pole breaker provides reliable circuit protection for wiring against overheating and short circuits. It uses thermal magnetic protection to respond quickly to fault currents while resisting fire and oxidation. The durable construction employs premium insulating materials, ensuring fireproof performance and long-term reliability suitable for residential, commercial, and light industrial applications.
20 Amp 1-Pole Circuit Breaker
This Sekelo 20 Amp single-pole breaker is designed for quick installation and reliable protection of circuits. It features advanced thermal magnetic trip mechanisms to quickly interrupt fault currents, while its insulated construction provides safety against fire and oxidation. Compatible with standard 3/4-inch panel spaces, it fits residential and light commercial distribution setups.
2100 2-Pole 100 Amp Circuit Breaker
The YUXIVCNE unit provides a robust 100 Amp protection option with 10 KAIC interrupting capacity. It is a direct replacement for Cutler Hammer load centers, using a Type 3/4 inch plug-on molded case design for easy installation. Its insulation material supports fire resistance and anti-drop properties, making it suitable for demanding power distribution needs in larger panels.
250 2-Pole 50-Amp Circuit Breaker
The GAOERFU C250/Type C3/4 inch plug-on molded case breaker offers high insulation quality, fast thermal magnetic operation, and an inverse time trip curve to minimize nuisance trips. It is designed to fit standard two-space panels and is compatible with residential load centers and similar distribution panels. The design emphasizes quick installation and durable performance with fireproof and oxidation-resistant materials.
Buying Guide
- Panel compatibility: Ensure the breaker’s plug-on design matches your panel’s bus size (typical 3/4-inch) and the number of spaces required by the installed configuration.
- Amp rating and circuit load: Choose breakers that align with the circuit requirements, with spare capacity for future expansion. Higher amps require panels rated for the corresponding current and have space for proper clearance.
- Protection type: Thermal magnetic trip mechanisms provide fast responses to short circuits and overloads while reducing nuisance tripping on mild overloads.
- Interrupting capacity: Look for KAIC ratings (e.g., 10 KAIC) to match anticipated fault currents in your service. Higher KAIC offers greater protection for larger systems.
- Insulation quality: Prioritize breakers with fireproof, oxidation-resistant insulation to improve longevity and safety in various environments.
- Warranty and support: Longer warranties and accessible customer service aid in installation confidence and ongoing maintenance.
- Physical size and mounting: Verify dimensions and mounting style (unit-mount or panel-mload) to ensure proper fit within the existing electrical enclosure.
- Replacement fit: If replacing a specific brand (e.g., Cutler Hammer), consider direct replacement options that minimize modification and wiring changes.
- Environment: For damp or dusty spaces, select breakers with robust insulation and sealed lightweight housings to resist corrosion and degradation.
- Value vs. performance: Balance upfront cost with durability, warranty, and installation ease to achieve the best long-term return on investment.
In summary, the listed insulated case circuit breakers provide a range of amp ratings and configurations suitable for common residential and light commercial applications. When selecting a breaker, prioritize panel compatibility, protection type, and insulation quality to ensure safe, reliable operation and straightforward maintenance over time.
