High current pogo pins are essential for robust electrical testing, precise connections, and dependable signal transmission in electronics manufacturing. This guide highlights five top options that combine gold plating, sturdy construction, and reliable current handling. Each product includes real-world applicability for semiconductors, mobile devices, automotive tech, and aerospace testing. Read on to compare features, materials, and suitability for your testing rig or production line.
Summary at a glance: the chosen items emphasize gold-plated contacts, durable housings, and stable performance under high current. They cover general purpose test probes, through-hole and PCB compatible designs, and a reliable UPS accessory for Raspberry Pi power management. Use the Buying Guide below to determine which style best fits your workflow and safety requirements.
| Product | Brand | Key Benefit |
|---|---|---|
| Golden Plating Copper Spring Pogo Pins Probes | Etfbuy | Gold-plated for superior conductivity and mechanical reliability |
| Spring-Loaded Magnetic Pogo 4 Pin Connector | Balepha | Magnetic, through-hole suitability, versatile 2.5 mm pitch |
| Gold-Plated 6mm Spring Probes Pack | Mxfans | Gold-plated for improved electrical properties and connection |
| P125-J High Accuracy Spring Test Probes | BORDSTRACT | High accuracy for PCB board testing with brass/stainless steel |
| P156-E High Accuracy Spring Probes | BORDSTRACT | Low resistance and long mechanical life for reliable testing |
| UPS HAT for Raspberry Pi | waveshare | High-current power supply with protective features for Pi systems |
Gold-Plated Copper Spring Pogo Pins Probes (Etfbuy) – Pack of 100
These gold-plated spring pins offer a flat bottom for easy weld connections and stable structure. They are designed for precise conduction and broad compatibility with semiconductor devices, mobile phones, automotive electronics, aerospace, and other precision connection applications. The gold plating enhances wear resistance and electrical performance in high-current environments, supporting reliable repeated testing and fixture cycling.
Spring-Loaded Magnetic Pogo Pin Connector (4 Pin) – 2.5 mm Pitch
This 4-pin spring-loaded pogo pin connector features a magnetic alignment system and a 2.5 mm pitch. It supports through-hole PCB mounting with male and female configurations, making it versatile for rapid test fixtures and debugging. The design facilitates repeatable contact force and dependable current flow during power and signal testing, suitable for electronics labs and production environments.
Mxfans Gold-Plated 6 mm Pogo Pins (100 Pieces)
This 100-piece set provides gold-plated pins designed for high-precision connections across semiconductor devices, automotive, aerospace, and mobile electronics. The gold plating improves electrical conductivity and mechanical robustness, enabling stable contact during repeated testing cycles and current-intensive applications.
BORDSTRACT P125-J Spring Test Probes – 100 Pieces
These high-accuracy probes feature a round head and use brass and stainless steel for reliable contact, corrosion resistance, and extended service life. They are well-suited to PCB testing scenarios that require precise repeatable connectivity across diverse component layouts and pads.

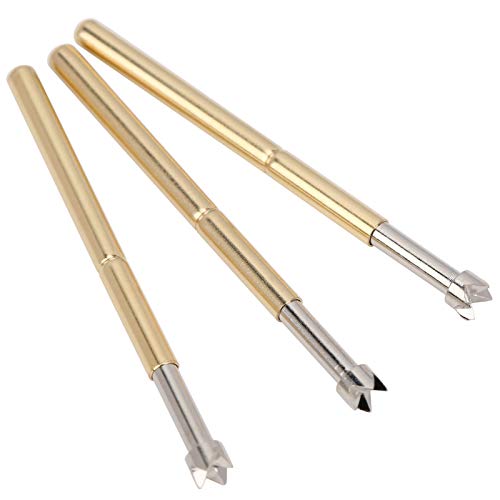

BORDSTRACT P125-Q Probes – 100 Pieces
Featuring a Q-head design with a four-claw configuration, these probes excel in solder joint and pad testing. The machining prioritizes precision for reliable, cost-effective testing, helping ensure consistent results across high-volume production or lab testing tasks.
Etfbuy 100Pcs Spring Probe with Conical Head
This set uses a conical head designed for testing through-hole components. The spring probe design provides essential contact between components on printed circuit boards, emphasizing testing stability and durability in rigorous environments and long-term fixture use.
BORDSTRACT P156-E High-Accuracy Probes – 100 Pieces
These probes feature low contact resistance, high passing current capability, and a long mechanical life of up to 30,000 cycles. The compact design and stable performance make them well-suited for demanding PCB testing, calibration rigs, and test fixtures requiring repeatable, high-quality connections.
Waveshare UPS HAT for Raspberry Pi
The Waveshare UPS HAT provides a 5V, 5A high-current power supply solution for Raspberry Pi systems with built-in protection features. It includes I2C monitoring for battery voltage, current, and remaining capacity, along with overcharge, overcurrent, and short-circuit protections. This module ensures stable power delivery for Pi-powered test rigs or data loggers that depend on continuous operation and battery management.
Buying Guide
Key purchase considerations when selecting high current pogo pins and related test probes include:
- Current rating and resistance: Choose pins designed to handle your target current with minimal contact resistance to prevent voltage drop and heating.
- Contact material and plating: Gold-plated contacts offer lower contact resistance and better wear resistance, especially in frequent connect/disconnect cycles.
- Head design and geometry: Conical, round, or Q-head configurations affect compatibility with different pads, through-holes, and solder joints.
- Mechanical life and durability: Look for probes rated for tens of thousands of cycles for long-term reliability in production or frequent testing.
- Compatibility and pitch: Ensure PCB through-hole compatibility and pitch (e.g., 2.5 mm) aligns with your fixtures and boards.
- Corrosion resistance: Materials like brass and stainless steel help maintain performance in varied environments.
- Packaging and quantity: Bulk packs reduce per-unit cost in high-volume testing; consider whether you need 100, 200, or more pieces.
- Safety and protection: For power-related use, ensure proper insulation and protection to prevent short circuits and accidental contact.
- System integration: For Raspberry Pi or other platforms, ensure the power accessory (UPS HAT) provides stable current, protection features, and monitoring.
Comparative insights:
- Gold-plated pins generally outperform unplated variants in longevity and conductivity under high-current conditions.
- Spring-loaded and magnetic configurations offer quick alignment and repeatable contact, reducing fixture setup time.
- Probe shapes (conical vs. round vs. Q-head) influence ease of insertion into pads, holes, or test sockets, impacting cleaning needs and dust resistance.
- Through-hole compatible designs are ideal for robust, repair-friendly fixtures, while compact probes suit dense PCB layouts.
