Electric water valve systems automate fluid control for irrigation, heating, cooling, and water management. This guide highlights five reliable motorized and solenoid valves that suit a range of pressures, voltages, and materials. Each option offers quick actuation, durable construction, and clear operating characteristics to help you choose the right valve for your application.
Overview of chosen products
| Product | Brand | Key Feature | Voltage | Material |
|---|---|---|---|---|
| Meskliu Motorized Ball Valve | Meskliu | Auto-return, brass body | 110V AC | Brass |
| Normally Closed Electric Water Shut Off Valve | Yosoo Health Gear | DC 12V, 0.02–0.8 MPa range | 12V DC | Brass |
| U.S. Solid 3/4″ Brass Electric Solenoid Valve | U.S. Solid | Fast actuation, high cycle life | 110V AC | Brass |
| HFS Electric Solenoid Valve | HFS | Cast copper, normally closed | 12V DC | Copper |
| HSH-Flo 3 Way Brass Valve | HSH-Flo | Three-way, with return mechanism | 9–24VAC / 9–36VDC | Brass |
Meskliu Motorized Ball Valve 3/4″ 110V Auto Return
The Meskliu valve uses a two-wire setup for straightforward wiring to a power source or simple switch. It is an auto-return device: power off closes the valve. Made from brass, it emphasizes durability and long life with an estimated 80,000 to 100,000 cycles. It operates across a standard 110V AC range and opens or closes in 13–18 seconds. A built-in power cutoff occurs automatically when fully open or closed, ensuring energy efficiency.
Key considerations: compatibility with 110V AC systems, duty cycle expectations, and whether your installation requires a normally closed configuration for safety. The brass construction supports reliability in various water and non-potable applications, while the absence of external electronics beyond the two-wire input simplifies installation.

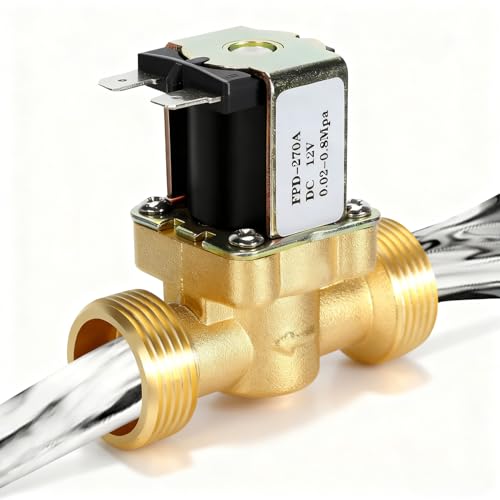

Normally Closed Electric Water Shut Off Valve
This 3/4 inch solenoid valve is designed for straightforward DC 12V operation with a normally closed configuration. It supports a range of 0.02–0.8 MPa and temperatures from 0°C to 55°C, making it suitable for clean water lines and light industrial uses. A 300 mA rated current allows stable performance, and the valve body is designed to seal reliably with appropriate washers. The model prioritizes safety through its NC stance, ensuring flow stops when power is removed.
Key considerations: ensure compatible supply voltage (12V DC), and confirm that the fluid is within the specified pressure and temperature range. Note that, per design, it should be used with water-based systems and not intended for potable drinking water unless explicitly rated for that use.
U.S. Solid 3/4″ Brass Electric Solenoid Valve
Engineered for high-cycle reliability, this valve features industrial-grade brass and a VITON seal for resistance to high temperatures and chemicals like gasoline and oils. It is designed for quick action—opening and closing in less than a second when energized or de-energized. While durable, it is intended for non-potable fluid applications; do not use with drinking water. The life expectancy is stated as well over a million cycles under proper operating conditions and maintenance.
Key considerations: compatibility with your fluid type, the need for fast response, and ensuring non-potable status if used in water lines. The VITON seal enhances temperature and chemical resistance, which broadens its use in industrial settings involving fuels or lubricants.
HFS Copper Solenoid Valve, 12V DC
This normally closed solenoid valve is built with a cast copper body and copper coil, offering strength and reliability. The 20 mm (0.787 inch) interface and 1/2 inch NPT threading ensure compatibility with common piping. It is designed for use in water, air, or gas lines where copper’s properties are advantageous. The valve relies on a normally closed configuration for safety, closing when power is removed. Construction emphasizes durability and robust sealing with copper materials and a suitable temperature range for typical HVAC or automation tasks.
Key considerations: ensure the flow material is compatible with copper and that the contact media remains within temperature and pressure limits. The normal-closed operation helps prevent unintended flow if power is interrupted.
U.S. Solid 3/4″ Brass Solenoid Valve, 12V DC
This model features a low-power coil arrangement that reduces heat, starting around 19W and dropping to 10–13W as it heats to operating temperature. Like other U.S. Solid valves, it uses brass for corrosion resistance and weldability, with a VITON gasket for high-temperature and chemical resistance. It is designed for non-potable water, fuels, and similar media, not drinking water. The device’s longevity and durability are emphasized to support demanding installations.
Key considerations: assess the electrical load and heat characteristics during continuous duty. Check compatibility with your media to avoid issues with brass and gasket materials in contact with certain fluids.
HSH-Flo 3 Way Brass Valve With Return
This 3-way valve offers electrical control with a brass body and an actuator designed for reliability. It supports a wide voltage range (9-24VAC and 9-36VDC) including 12V, and features position feedback and a return mechanism. The IP67 rating adds protection against dust and water ingress, making it suitable for harsher environments or outdoor installations. The device is designed for HVAC, water treatment, and other fluid control tasks requiring multiple flow paths and reliable actuation.
Key considerations: determine whether you need a 2-wire control, a position feedback feature, and a robust IP rating. A three-way setup can enable more complex routing in systems with multiple zones or mixing applications.
Ximimark 2Pcs 1/2″ Electric Solenoid Valve
These all-plastic-bodied valves emphasize versatility and moisture resistance, featuring external thread connections on both ends and a 12V DC normally closed design. The coil is packaged for waterproof and durability, with good electrical insulation properties to support long-term operation. The valve is suited for water and air applications where a plastic body is preferred for chemical compatibility or weight considerations, and it handles pressures up to 0.02–0.8 MPa as a general guideline.
U.S. Solid 3/4″ Smart Motorized Ball Valve
This 3/4″ smart valve integrates remote app control and a manual switch, enabling portable monitoring and adjustment. It supports mobile app operation, open percentage selection for precise flow control, and a scheduling function that automatically opens or closes at set times. The combination of remote control, programmable scheduling, and manual override provides flexible management for automated systems, smart homes, or small commercial setups.
Buying Guide for Electric Water Valves
- Valve type: Ball valves and solenoid valves are common for on/off control. Ball valves offer fast actuation and tight shutoff; solenoids provide compact form and simple wiring.
- Voltage and power: Ensure compatibility with your power source (12V DC, 110V AC, or dual ranges). Consider power draw and heat generation, especially for continuous duty.
- Material compatibility: Brass is common for water lines and durability, while copper and plastic bodies suit specific environments. Check gasket material (VITON vs others) for chemical resistance.
- Pressure and temperature range: Confirm the fluid’s pressure (MPa) and temperature limits against valve specs. Non-potable water use often requires different materials than potable water.
- Durability and cycles: Some valves advertise millions of cycles. For critical systems, choose models with high cycle life and robust seals.
- Control features: Position feedback, remote app control, and scheduling add convenience for automation. Decide whether you need NC (normally closed) or NO (normally open) configurations.
- Installation considerations: Thread standards (NPT), connection size, and whether external power supplies are accessible in your setup.
- Safety and maintenance: NC valves offer passive safety when power is cut. Plan for periodic inspection of seals and wiring.
- Environmental exposure: IP ratings (like IP67) indicate dust and water resistance—important for outdoor or humid environments.
- System integration: Ensure valve electronics are compatible with existing controllers, home automation hubs, or building management systems.
