Drag chain cable carriers protect cables, hoses and wires on moving equipment. They prevent tangling, reduce wear, and keep components aligned for consistent performance. This guide reviews five highly compatible options for CNC routers, mills, 3D printers, and automated machinery. Each product emphasizes easy assembly, modular length, and robust construction. Read on to compare sizes, configurations, and practical use cases to help you choose the right drag chain for your setup.
| Product | Brand | Internal Size | Length | |
|---|---|---|---|---|
| 39.3″ Open Type Drag Chain – 10x11mm / 10x20mm | USKEYVISION | 10×11 mm (or 10×20 mm options) | 1 M | Open |
| 39.3″ Open Type Drag Chain – 10x20mm | USKEYVISION | 10×20 mm | 1 M | Open |
| Closed Type Drag Chain – 25x77mm | QWORK | 25×77 mm | 1 M | Closed |
| Open Type Drag Chain – 15x30mm | CAMXTOOL | 15×30 mm | 1 M | Open |
| Semi-Enclosed Type Drag Chain – 18x50mm | QWORK | 18×50 mm | 1 M | Semi-Enclosed |
These selections cover a range of internal dimensions, from slim 10×11 mm channels suitable for light-duty electronics cabling to larger 25×77 mm and 18×50 mm sizes for heavier bundles. The list includes both open and enclosed styles, allowing straightforward installation and future length adjustments. Each option supports easy disassembly or extension, and many include end connectors and screwdrivers for quick customization on site.

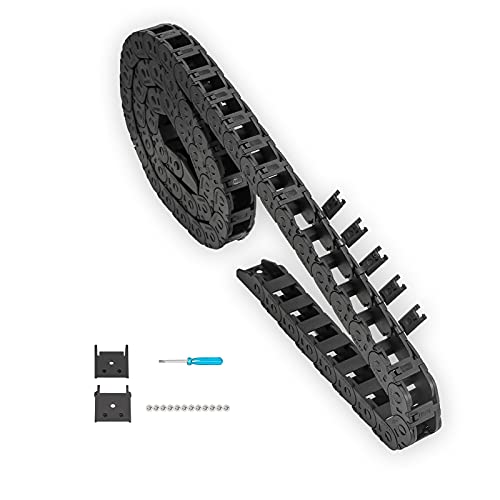

USKEYVISION 39.3″ Open Drag Chain 10x11mm – Flexible Length
Internal Size: 10 x 11 mm; External: 14.6 x 17 mm. Total length: 1 meter. Made from PA66 nylon for durability in demanding environments. This open-type chain is designed to freely bend and articulate around tight curves, making it suitable for CNC routers, mills, and 3D printers. The kit includes one pair of connectors, nine screws, and a screwdriver, enabling quick length adjustments and side-cover access. Applications span reciprocating motion, shielding cables, oil, gas, and water lines, with broad compatibility across industrial machinery and automation setups.
Key features include modular assembly, ease of modification, and compatibility with a wide range of cables and hoses. The open design simplifies installation and maintenance when you need to service or replace components mid-project. It is well-suited for lightweight to medium-duty cable management on machines that require frequent reconfiguration or extended reach.
USKEYVISION 39.3″ Open Drag Chain 10x20mm – Enhanced Clearance
Internal Size: 10 x 20 mm; External: 14.6 x 24 mm. Includes an extra pair of connectors, screws, and a screwdriver for flexible length customization. The chain segments can be opened for easy installation and maintenance, and then reassembled for a custom total length. Suitable for CNC tools, electronic equipment, and automated systems requiring moderate cable protection and straightforward assembly.
The design emphasizes modularity and adaptability, allowing users to split the chain into two pieces if needed. It supports flexible routing paths and is compatible with diverse cables, pipes, and hoses used in modern fabrication environments. A practical choice for shop setups with frequent reconfigurations or expansions.
QWORK 25mm x 77mm Closed Drag Chain – High Toughness
Internal size: 25 x 77 mm; External size: 39 x 94 mm. Length: 1 meter. Made of reinforced plastics with good toughness, wear resistance, and flame resistance. This closed chain offers robust protection for internal cables and hoses, making it ideal for long, protected runs on CNC routers, laser engravers, and automated systems. The R55 curvature provides a stable bend radius for consistent cable routing in constrained spaces. Suitable for outdoor or indoor installations where environmental exposure is a consideration.
Its closed design helps prevent foreign object intrusion and reduces cable snags during operation. The chain’s durable construction makes it a reliable option for higher-load cable management tasks and installations where a clean, enclosed appearance is desirable.
CAMXTOOL 15x30mm Open Drag Chain – Flexible Assembly
Internal size: 15 x 30 mm; External: 39 x 94 mm; Length: 1 meter; Screws included. Each section can be opened for easy installation, maintenance, and reconfiguration. The chain is designed to be detachable and spliceable, allowing custom lengths to fit specific machine footprints. It is widely applicable to CNC machines, 3D printers, and robotic systems that require modular cable routing with simple end-connectors and mounting hardware.
The semi-enclosed design with easy-access top cover aids quick installation of harnesses and simplifies future upgrades. The kit’s flexibility makes it a practical choice for users needing to adapt cable runs as their tooling evolves.
QWORK 18x50mm Semi-Enclosed Drag Chain – Robust Option
Internal size: 18 x 50 mm; External: 23 x 83 mm; Length: 1 meter. Semi-enclosed with end connectors included, designed to protect cables while allowing straightforward maintenance. The chain is built from reinforced plastic with good toughness and temperature stability, suitable for CNC routers, laser cutters, and automated machinery. It provides a middle ground between fully open and closed designs, balancing accessibility with protection.
Applications include robotic arms, machining centers, and automated storage systems where a compact, shielded cable path is beneficial. The end connectors and robust construction help ensure reliable operation in demanding environments and over long service lifetimes.
Buying Guide: Key Purchase Considerations
- Internal size vs. cable bundle: Match the internal height and width to your cable, hose, or tubing diameter. A too-snug fit can hamper installation, while too loose a fit can allow movement and wear.
- Open vs. closed vs. semi-enclosed: Open chains simplify installation and maintenance but offer less protection. Closed chains shield contents from debris and snagging, while semi-enclosed designs provide a balance between access and protection.
- Modularity and splicing: Look for chains that can be opened or sectioned to adjust length on the fly. This is especially useful for setups that may expand or reconfigure over time.
- End connectors and mounting: Ensure compatible end connectors and mounting hardware are included or readily available. Proper mounting secures the chain and prevents damage from dynamic loads.
- Material and temperature resistance: Nylon PA66 is common for drag chains and offers good wear resistance and temperature tolerance. Consider environmental exposure if the setup operates outdoors or near heat sources.
- Durability vs. weight: Heavier-duty chains provide longer lifespans in demanding applications, but weigh more and may require stronger mounting supports. Balance strength with the machine’s motion profile.
- Ease of maintenance: Chains that open easily or split into two pieces reduce downtime during maintenance or cable changes, which is valuable for production environments.
- Compatibility with accessories: Some kits include extra screws, screwdrivers, or additional connectors. These extras can save time during installation and future upgrades.
When selecting a drag chain, consider your machine type, motion profile, and the environment. For light to moderate duty on 3D printers and hobbyist CNCs, open-type designs with easy access and modular length are convenient. For enclosed work areas or longer, more rugged runs, closed or semi-enclosed variants offer increased protection against debris and wear. Always verify the internal dimensions against your cabling bundle and plan for future expansions to maximize long-term value.
