When selecting a 480V three-phase disconnect, the right choice balances safety, reliability, and ease of maintenance. The products below cover common configurations for motor control, outdoor installations, and quick access in industrial environments. This guide highlights five top options and explains how each design meets 480V three-phase needs while fitting into standard enclosures and wiring setups.
Summary of Selected Products
| Product | Brand | Voltage/Phases | Enclosure | Key Benefit |
|---|---|---|---|---|
| Leviton 30 Amp 600V Three-Phase Motor Starter MS303-DS | Leviton | 600V, 3P | Wall box-ready, non-grounding | Reliable motor disconnect with versatile wiring |
| Leviton 30 Amp 600V MS303-DSW 3P | Leviton | 600V, 3P | Wall box-ready, back/side wiring | White finish, same utility with different finish option |
| MUJURUR 60 Amp 3P 240V Disconnect Box | MUJURUR | 240V, 3P | Outdoor NEMA 3R | Rugged outdoor safety disconnect with corrosion protection |
| ULXIOM 3P 35A 440VAC Enclosed Disconnect | ULXIOM | 440VAC, 3P | IP66 outdoor enclosure | Enclosed, waterproof, versatile industrial use |
| JINDOUZI 3P 30A 240V Disconnect | JINDOUZI | 240V, 3P | Metal box, quick connect | Compact, quick disconnect for control wiring |
Leviton MS303-DS: 30A, 600V Three-Phase Motor Starter
The Leviton MS303-DS is designed for safe, reliable control of motor loads and can function as a motor disconnect. It fits in standard wall boxes and accepts back or side wiring, with terminal clamps or ring terminals for versatile termination. This non-grounding, industrial-grade switch supports 600V three-phase circuits, making it suitable for various motor applications in manufacturing and facilities.
Key Considerations
Rating and compatibility align with typical 480V three-phase systems, while the unit’s size and wiring options simplify field installation. For maintenance, the disconnect enables quick shutoff without removing enclosure panels.
Leviton MS303-DSW: White 3-Phase 30A Disconnect
This variant mirrors the MS303-DS in electrical performance but offers a white finish. It remains a practical option where visibility or code requirements favor a lighter-colored device. The 30A, 600V, three-phase configuration remains well-suited for motor disconnect duties, with the same back or side wiring acceptance and clamp/ring terminals for secure connections.
Key Considerations
Choose this model when a white, code-compliant appearance is desired without sacrificing performance. Ensure enclosure accessibility and mounting provisions match the wall-box space.
JINDOUZI 3P 60Amp 240V Disconnect: Quick Safety Switch
This heavy-duty safety switch provides quick connect and disconnect for a 3P 60A, 240V circuit. The external hinge handle enables rapid power control, beneficial in emergency shutdowns and routine maintenance. A 1mm steel shell adds durability, with dustproof protection and an anti-misoperation design. Locks can be added to secure the OFF position, reducing the risk of accidental re-energization.
Key Considerations
Consider voltage compatibility with your 480V system—this unit is specified at 240V, so use in the correct part of a 480V network or as a supplementary disconnect for related equipment. The robust housing supports challenging environments.
MUJURUR 30 Amp Non-Fusible Disconnect: Indoor/Outdoor 3P
This 30A, 3-pole disconnect is designed for indoor or outdoor applications and adheres to NEMA 3R standards. It offers corrosion resistance and a dual-layer protective finish, with a larger space for easier wiring and bending. The unit supports reliable interruption of power for general-purpose machinery and equipment control in varied environments, with straightforward wiring and mounting options.
Key Considerations
Evaluate whether a non-fusible design meets the protection needs of your system. For outdoor use, confirm enclosure ratings and weather exposure match site conditions.
MUJURUR 60 Amp 3P NEMA 3R Disconnect with Safety Locks
This 60A, 3P disconnect is housed in a NEMA 3R enclosure designed for outdoor commercial settings. It features a quick make-break action with a metal handle for rapid operation and a tamper-resistant design. The device includes a dedicated grounding terminal and labels to minimize misoperation, supporting safer and more reliable field maintenance in harsh conditions.
Key Considerations
Check that the 60A rating matches the service requirements of your motor loads. The NEMA 3R enclosure makes this unit suitable for external installations where exposure to weather is a factor.
ULXIOM 3P 35A 440VAC Enclosed Disconnect
The ULXIOM enclosed motor disconnect switch provides 440VAC, 3P performance in a rugged IP66-rated enclosure. This unit is designed for versatility across industrial machinery, power distribution, and switchboards. Its waterproof and dustproof construction reduces the risk of environmental damage during maintenance, while enabling direct circuit control and rapid isolation when needed.
Key Considerations
Match enclosure IP rating to site exposure, ensuring the installation remains safe during weather events or wash-down procedures. Consider whether non-fusible protection suits your protection scheme or if a fused variant is required for your motor loads.

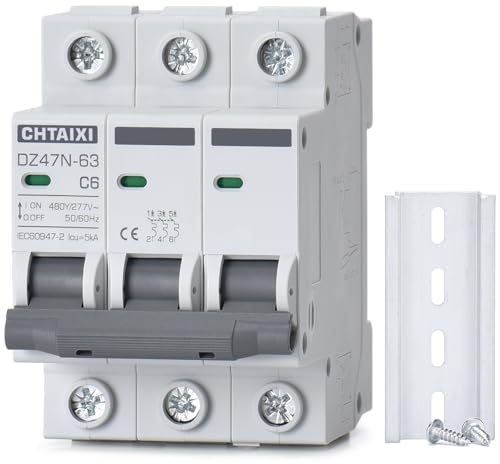

CHTAIXI 6 Amp 480V 3P MCB DIN Rail Disconnect
The CHTAIXI miniature circuit breaker with 6A at 480V and 3P is designed for protection and simple isolation in control panels. It includes a thermal magnetic trip curve and silver alloy contacts, with a flame-retardant shell. While not a traditional motor disconnect, it offers essential overcurrent protection within a compact DIN rail footprint, suitable for control circuits and auxiliary protection in a 480V three-phase system.
Key Considerations
Use for control circuits or as part of a broader motor control scheme. Verify compatibility with existing DIN rail installations and ensure the selected breaker’s trip characteristics match the load profile.
Buying Guide: Key Purchase Considerations for 480V 3-Phase Disconnects
Ensure the disconnect aligns with the specific motor or equipment it will protect. Consider voltage rating, current rating, and whether the device is fusible or non-fusible, as this affects how power is interrupted during faults.
Enclosure and environment matter. Outdoor use requires IP and NEMA ratings that withstand rain, dust, and temperature changes. Indoor installations should still meet dust and impact considerations and fit within control panels or wall boxes.
Wiring and terminations are critical. Look for back or side wiring options, terminal clamps or ring terminals, and adequate space for wiring routing. This reduces install time and improves reliability.
Safety features and codes are central. Locks, tamper resistance, and clear labeling help prevent misoperation. Equipment should comply with local electrical codes and industry standards for motor disconnects in 480V systems.
Maintenance and reliability matter. Favor units with robust housings, corrosion resistance for outdoor use, and clearly rated manuals or documentation that simplify service and replacement.
Application fit is essential. Decide whether you need a dedicated motor disconnect, a general-purpose safety switch, or an enclosed unit for harsh environments. Matching the unit to motor load, ambient conditions, and space constraints ensures long-term performance.
